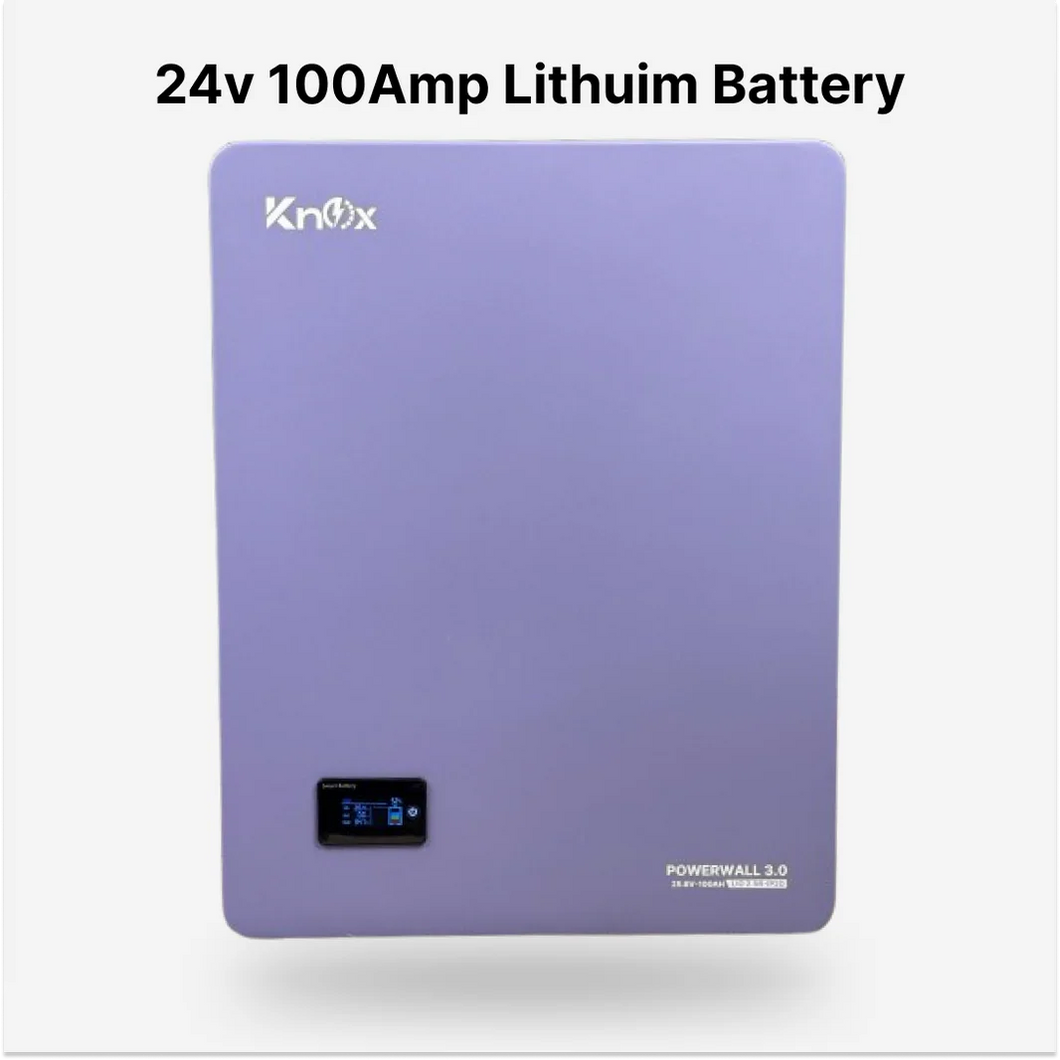

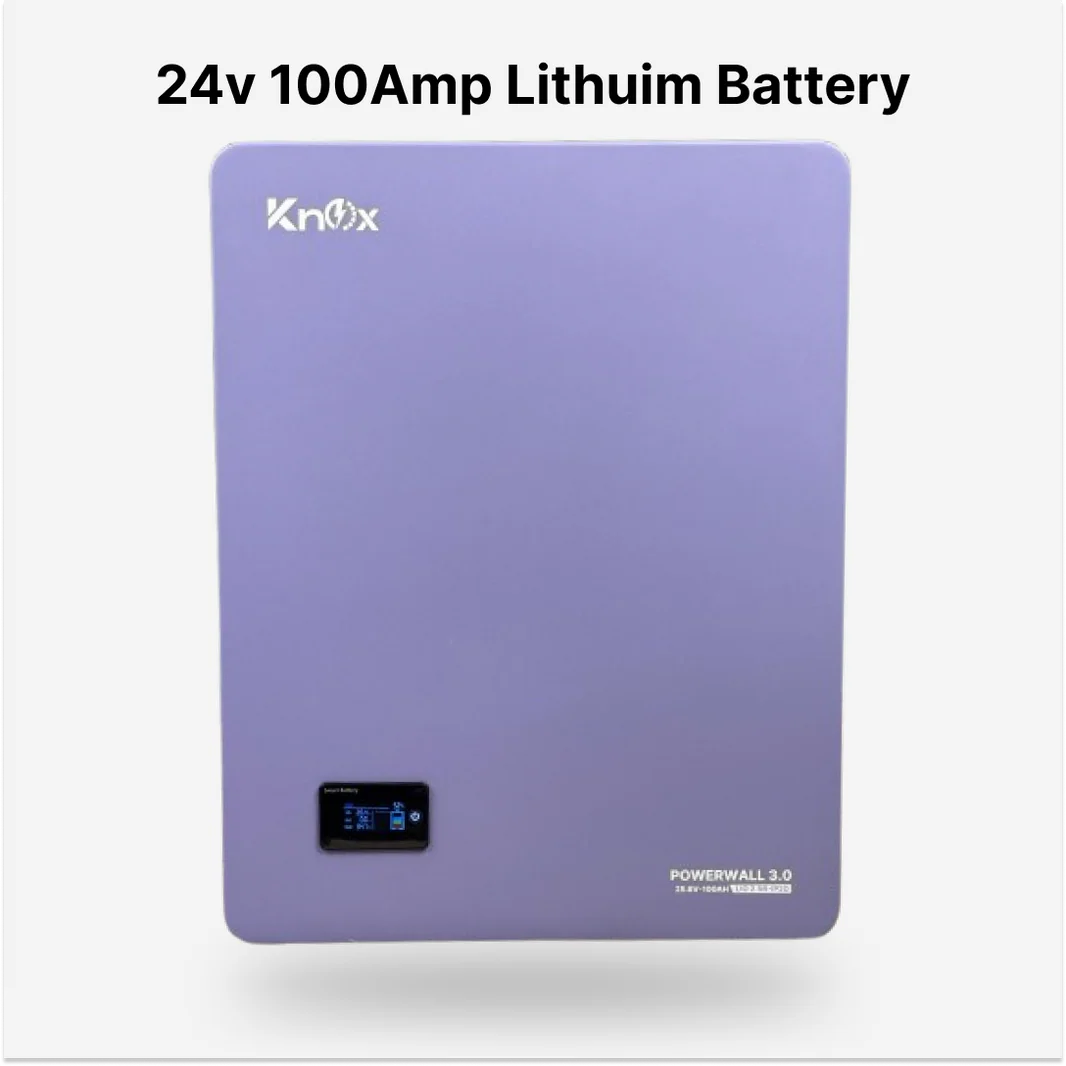

Knox Powerwall 3.0 24v 100Amp Lithuim Battery
Regular price
Rs.125,000.00
Rs.109,000.00 PKR
13% OFF
Knox Powerwall 3.0 LIO 2.56-IP20 – Advanced LiFePO4 Lithium Battery
✅ Model: LIO 2.56-IP20
🛠️ Type: Wall-Mounted Lithium Iron Phosphate (LiFePO4) Battery
⚡ Capacity: 2.56kWh | 25.6V | 100Ah
💎 Grade: A-Grade Prismatic Cells
🧩 Overview
The Knox Powerwall 3.0 LIO 2.56-IP20 is a next-generation wall-mounted lithium battery built using premium-grade prismatic LiFePO4 cells. Designed for residential solar systems, backup applications, and hybrid inverters, this unit ensures maximum safety, lifespan, and performance. With over 6000 cycles at 80% DOD, built-in BMS, and an informative LCD display, it delivers consistent power with minimal maintenance.
🔑 Key Features
-
🔋 A-Grade Prismatic LiFePO4 Cells – Reliable and long-lasting
-
🔁 6000+ Cycle Life @80% DOD (0.5C, 25°C)
-
⚙️ Built-in BMS – Overcharge, over-discharge, short circuit, high/low temp protection
-
📺 LCD Display – Real-time monitoring of SOC, voltage, alarms, and temp
-
⚖️ Cell Balancing Function – Improved battery health and cycle life
-
🧱 Sturdy Metal Enclosure – Enhanced heat dissipation and fire resistance
-
🛡️ Certified Safe – UN38.3, MSDS approved
-
🧩 Scalable System – Max 2 in series, 4 in parallel
-
🔌 Communication Support – RS485 port
-
🖼️ Wall-Mounted Design – Easy installation, space-saving
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Model | LIO 2.56-IP20 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh (2.56kWh) |
| Pack Configuration | 8S1P |
| Max Charge Voltage | 28.8V |
| Discharge Cut-off Voltage | 20.8V |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Peak Discharge Current | 120A |
| Recommended DOD | 80% |
| Cycle Life | >6000 cycles @ 80% DOD |
| Display | LCD (4-line system info) |
| Communication | RS485 |
| Protection | IP20 |
| Mounting Type | Wall-Mounted |
| Operating Temperature | Charge: 0°C |
| Optimal Storage Temp | 5°C ~ 35°C |
| Relative Humidity | 40% ~ 80% |
| Terminal | M6 |
| Dimensions (mm) | 350 x 180 x 450 |
| Net Weight | 25.1 ± 0.5 kg |
🏠 Ideal For
-
Home Solar Backup Systems
-
Small Office & Commercial Solar Applications
-
Hybrid Inverter Systems (Inverex, Knox, Solis, etc.)
-
Off-Grid Installations
