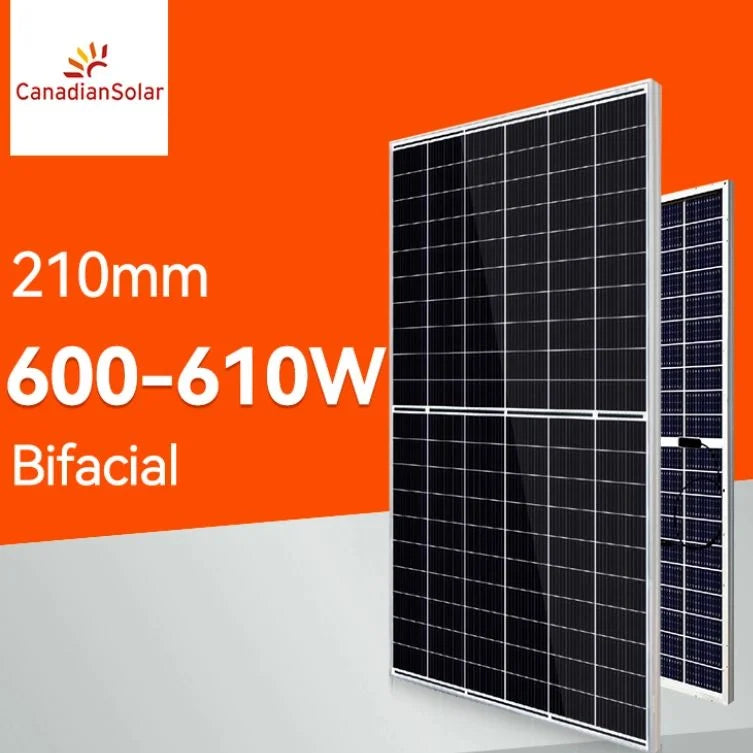

Canadian Solar Module Hiku7 CS7l 600W 605W 610W
Regular price
Rs.0.00
Model NO.:CS7L-MS 600-610
Material:Monocrystalline Silicon
Weight:32.5kg
Connector:T4 Series or H4 Utx or Mc4-Evo2
Cables:4mm2, 400mm, 200mm or Customized Length
Cell Size:210*210mm

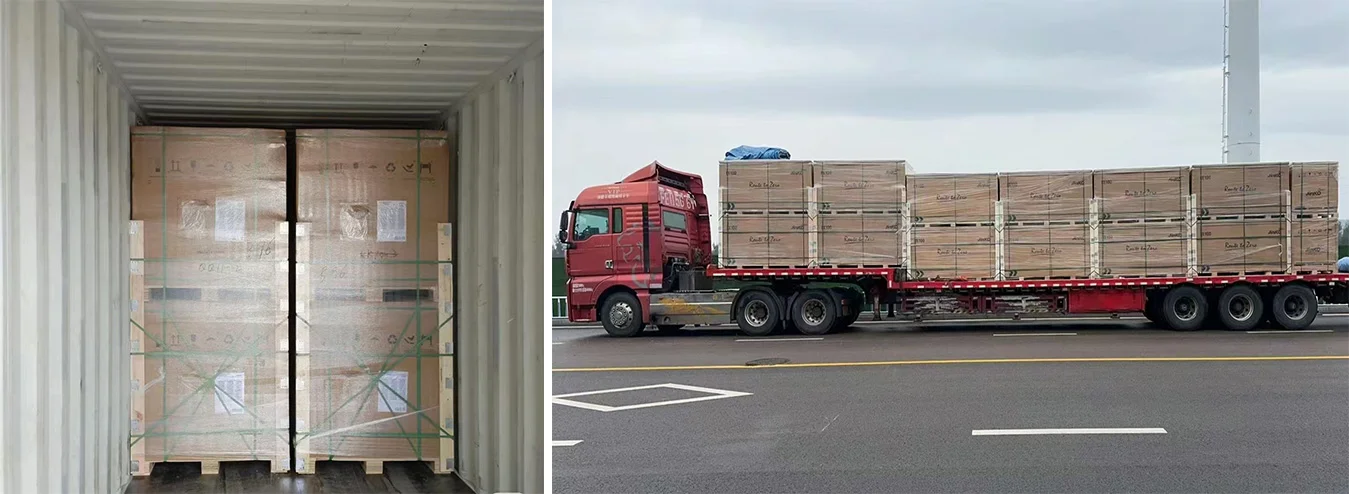

Transport Package:Wooden Pallet and Carton Packing
Specification:2172*1303*35mm
Trademark:CanadianSolar
Model NO.
CS7L-MS 600-610
Material
Monocrystalline Silicon
Weight
32.5kg
Connector
T4 Series or H4 Utx or Mc4-Evo2
Cables
4mm2, 400mm, 200mm or Customized Length
Cell Size
210*210mm
Transport Package
Wooden Pallet and Carton Packing
Specification
2172*1303*35mm
Trademark
CanadianSolar
Origin
China
Product Description
|
MECHANICAL SPECIFICATION |
|
|
Format |
2172 *1303 *35 mm |
|
Weight |
31.4kg±5% |
|
Cell |
120 monocrystalline PERC half cell,210 mm |
|
Junction Box |
Protection class IP67,with bypass diodes |
|
Cable |
4mm² Solar cable |
|
Connector |
MC4 Compatible |
|
ELECTRICAL DATA | STC* |
||||
|
CS3W |
590MS |
595MS |
600MS |
605MS |
|
Nominal Max. Power (Pmax) |
590W |
595W |
600W |
605W |
|
Opt. Operating Voltage (Vmp) |
34.5V |
34.7V |
34.9V |
35.1V |
|
Opt. Operating Current (Imp) |
17.11A |
17.15A |
17.20A |
17.25A |
|
Open Circuit Voltage (Voc) |
40.9V |
41.1V |
41.3V |
41.5V |
|
Short Circuit Current (Isc) |
18.37A |
18.42A |
18.47A |
18.52A |
|
Module Efficiency |
20.8% |
21.0% |
21.2% |
21.4% |
|
Operating Temperature |
-40°C ~ +85°C |
|||
|
Max. System Voltage |
1500V or 1000V |
|||
|
Max. Series Fuse Rating |
30A |
|||
|
Application Classification |
Class A |
|||
|
Power Tolerance |
0 ~ + 5 W |
|||
|
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). |
||||
