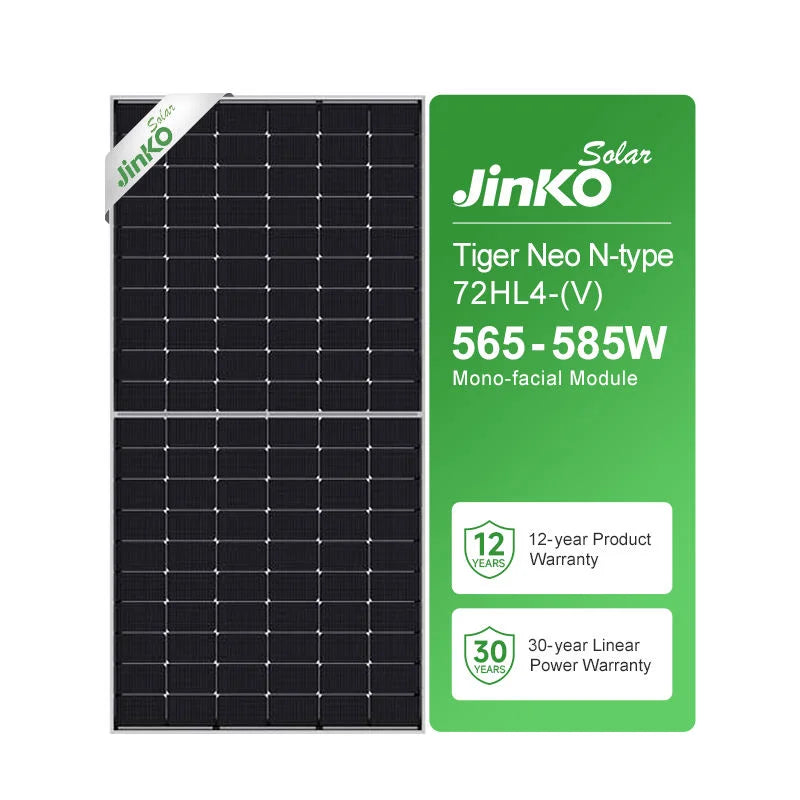

Jinko Mono PV Module Solar Plate 565W 570 W 580w
Regular price
Rs.0.00
Cell Type: N-type Mono-crystalline
Weight:28.0 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2278mm*1134mm*35mm
Trademark:Jinko solar
Origin:China
|
Module Type |
JKM565N-72HL4 JKM565N-72HL4-V |
JKM570N-72HL4 |
JKM575N-72HL4 |
JKM580N-72HL4 |
JKM585N-72HL4 |
||||
|
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC NOCT |
|
|
Maximum Power Pmax.(Wp) |
565 |
425 |
570 |
429 |
575 |
432 |
580 |
436 |
585 440 |
|
Maximum Power Vmp(V) |
41.92 |
39.38 |
42.07 |
39.51 |
42.22 |
39.60 |
42.37 |
39.69 |
42.52 39.81 |
|
Maximum Power Imp(A) |
13.48 |
10.79 |
13.55 |
10.85 |
13.62 |
10.92 |
13.69 |
10.99 |
13.76 11.05 |
|
Open-circuit Voc(v) |
50.60 |
48.06 |
50.74 |
48.20 |
50.88 |
48.33 |
51.02 |
48.46 |
51.16 48.60 |
|
Short-circuit Isc(A) |
14.23 |
11.49 |
14.31 |
11.55 |
14.39 |
11.62 |
14.47 |
11.68 |
14.55 11.75 |
|

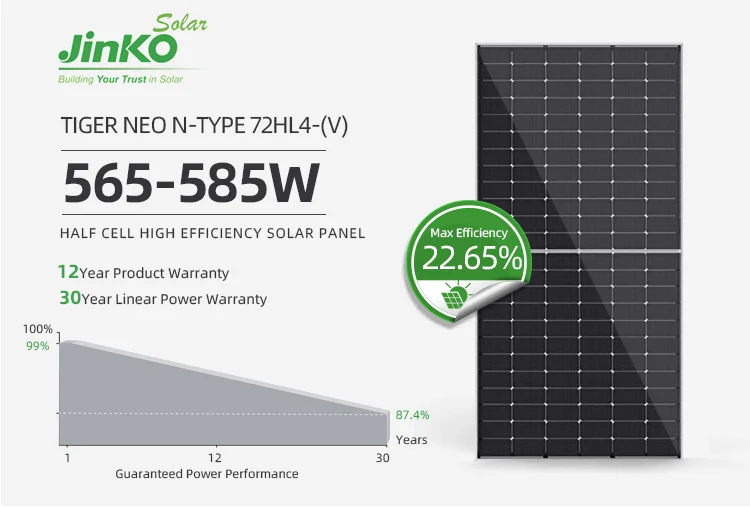

Module Efficiency |
21.87（STC） |
22.07%（STC） |
22.26%（STC） |
22.45（STC） |
22.65%(STC） |
||||
|
Operating Temperature（℃）: -40℃~+85℃ |
|||||||||
|
Maximum System Voltage: 1000/1500VDC (IEC) |
|||||||||
|
Maximum Series Fuse Rating: 25A |
|||||||||
|
Power Tolerance: 0~+3% |
|||||||||
|
Temperature Coefficients of Pmax: -0.30%/℃ |
|||||||||
|
Temperature Coefficients of Voc: -0.25/℃ |
|||||||||
|
Temperature Coefficients of Isc: 0.046%/℃ |
|||||||||
|
Nominal Operating Cell Temperature(NOCT): 45±2℃ |
|||||||||

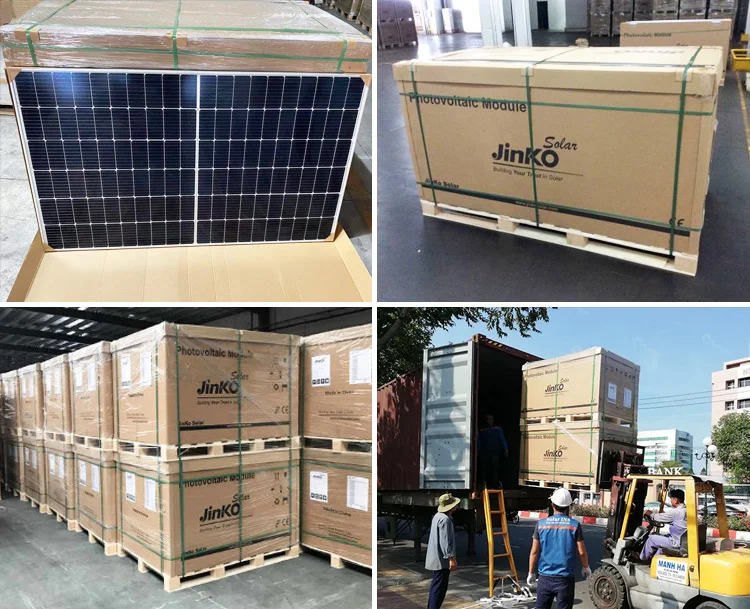

Packing/Packing list
