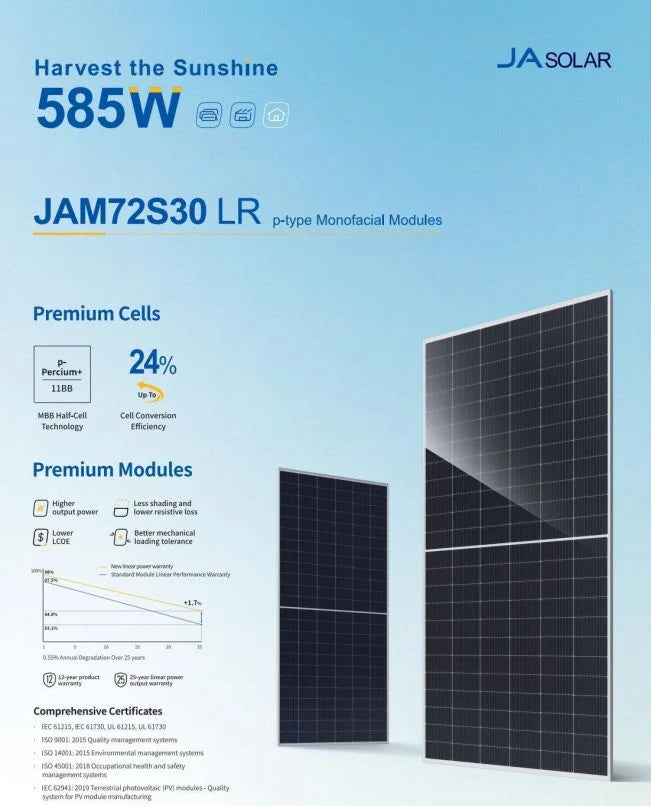

JA Solar JAM72S30LR 585W
Regular price
Rs.0.00
Model NO:JAM78S30 585-610/GR
Weight:30.5 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2456±2mm*1134±2mm*35±1mm
Trademark:JA solar
Origin:China
| MECHANICAL DATA | |
| Cell | Mono |
| Weight | 30.5kg |
| Dimensions | 2456±2mm*1134±2mm*35±1mm |
| Cable Cross Section Size | 4mm²(IEC)，12 AWG(UL) |
| No. of cells | 156(6*26) |
| J-Box | IP68, 3 diodes |
| Connector | QC 4.10-351/ MC4-EVO2A |
| ELECTRICAL DATE(STC) | ||||||
| Nominal Max. Power (Pmax) | 585w | 590w | 595w | 600w | 605w | 610w |
| Power Tolerance | 0~+5W | |||||
| Open Circuit Voltage(Voc) [V] | 53.2 | 53.3 | 53.4 | 53.5 | 53.61 | 53.73 |
| Maximum Power Voltage(Vmp) [V] | 44.56 | 44.8 | 45.05 | 45.3 | 45.53 | 45.77 |
| Short Circuit Current(lsc) [A] | 13.88 | 13.93 | 13.98 | 14.03 | 14.08 | 14.13 |
| Maximum Power Current(lmp) [A] | 13.13 | 13.17 | 13.21 | 13.25 | 13.29 | 13.33 |
| Module Efficiency[%] | 20.90% | 21.10% | 21.30% | 21.50% | 21.60% | 21.80% |
| Why JAM78S30GR? | Looking for an efficient, high-quality solar panel? Look no further! JAM78S30GR is the ultimate choice for your home, system, farm, or parking lot. With its exceptional efficiency and high light absorption rate, JAM78S30GR stands out from the crowd. It boasts a maximum power output of 610W and an impressive efficiency rating of 21.8%. Whether you're a homeowner seeking to harness the power of the sun, a business owner aiming to reduce energy costs, or a farmer looking for sustainable solutions, JAM78S30GR has got you covered. Its versatility makes it the perfect fit for various applications. Why choose JAM78S30GR? Here are a few reasons: High Efficiency: With its top-notch efficiency, JAM78S30GR ensures maximum power generation, allowing you to make the most of every ray of sunlight. Exceptional Quality: JA Deepblue3.0 series is renowned for its superior craftsmanship and durability. Rest assured, JAM78S30GR will withstand the test of time and deliver outstanding performance. Versatile Applications: From powering your household appliances to supporting large-scale systems, farms, and parking lots, JAM78S30GR adapts seamlessly to diverse environments. |
