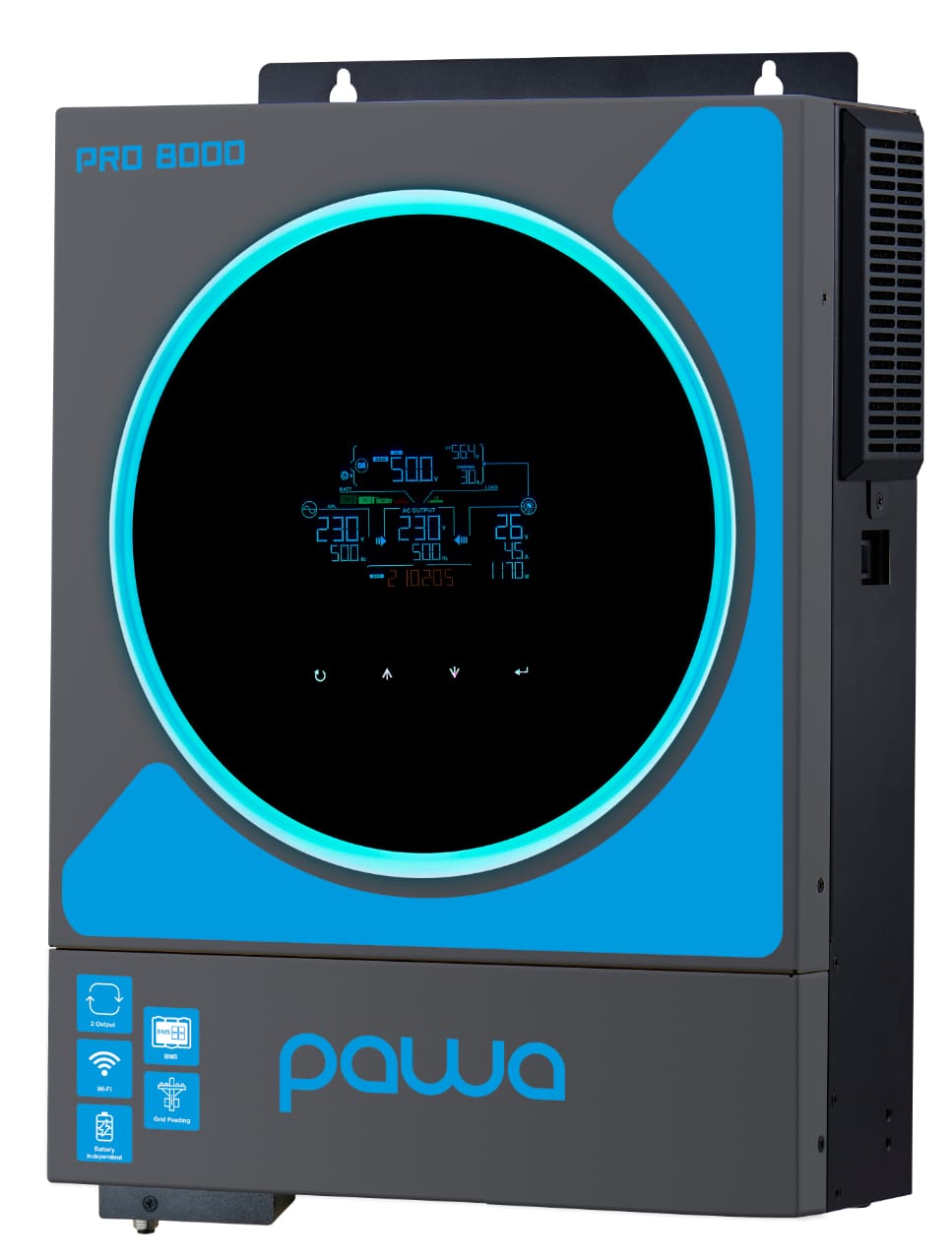

PAWA PRO 8000 Solar Inverter (6000VA/6000W)

Product Overview

The PAWA PRO 8000 is a high-capacity solar inverter engineered for demanding energy systems. With 6000W of clean sine wave output, advanced MPPT charging, and full WiFi control, this inverter delivers premium performance and reliability for homes, offices, and commercial setups.

🔋 Key Specifications

• Rated Power: 6000VA / 6000W

• Input Voltage: 230 VAC

• Selectable Voltage Range:

  • 170–280 VAC (For Personal Computers)

  • 90–280 VAC (For Home Appliances)

• Frequency Range: 50Hz / 60Hz (Auto Sensing)

• Output Voltage Regulation: 230 VAC ±10%

• Surge Power: 12000VA

• Efficiency (Peak): 93%

• Waveform: Pure Sine Wave

• Transfer Time:

  • 10 ms (For PCs)

  • 20 ms (For Home Appliances)

🔋 Battery & Charging

• Battery Voltage: 48VDC

• Floating Charge Voltage: 54VDC

• Overcharge Protection: 63VDC

• Solar Charger Type: MPPT

• Maximum PV Array Power: 8000W

• MPPT Range @ Operating Voltage: 60–450VDC

• Maximum PV Input Current: 27A

• Maximum Solar Charge Current: 120A

• Maximum AC Charge Current: 100A

• Combined Max Charge Current: 120A

⚙️ Features

• Dual output for smart load management

• Maximum PV input current 27A

• 4.3” colored LCD with touch control

• Customizable RGB LED status ring

• Built-in WiFi & OTA firmware updates

• USB On-the-Go and RS communication ports

• Built-in BMS & energy meter compatibility

• Battery-independent operation

• Integrated anti-dust kit

🧰 Physical & Environmental Details

• Dimensions: 119 × 313.6 × 457.5 mm

• Net Weight: 12 kg

• Communication Interface: USB / RS232 / RS485 / WiFi / Dry-contact

• Humidity: 5%–95% (Non-condensing)

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

🛡️ Warranty

1 Year Parts + 4 Years Service Warranty
