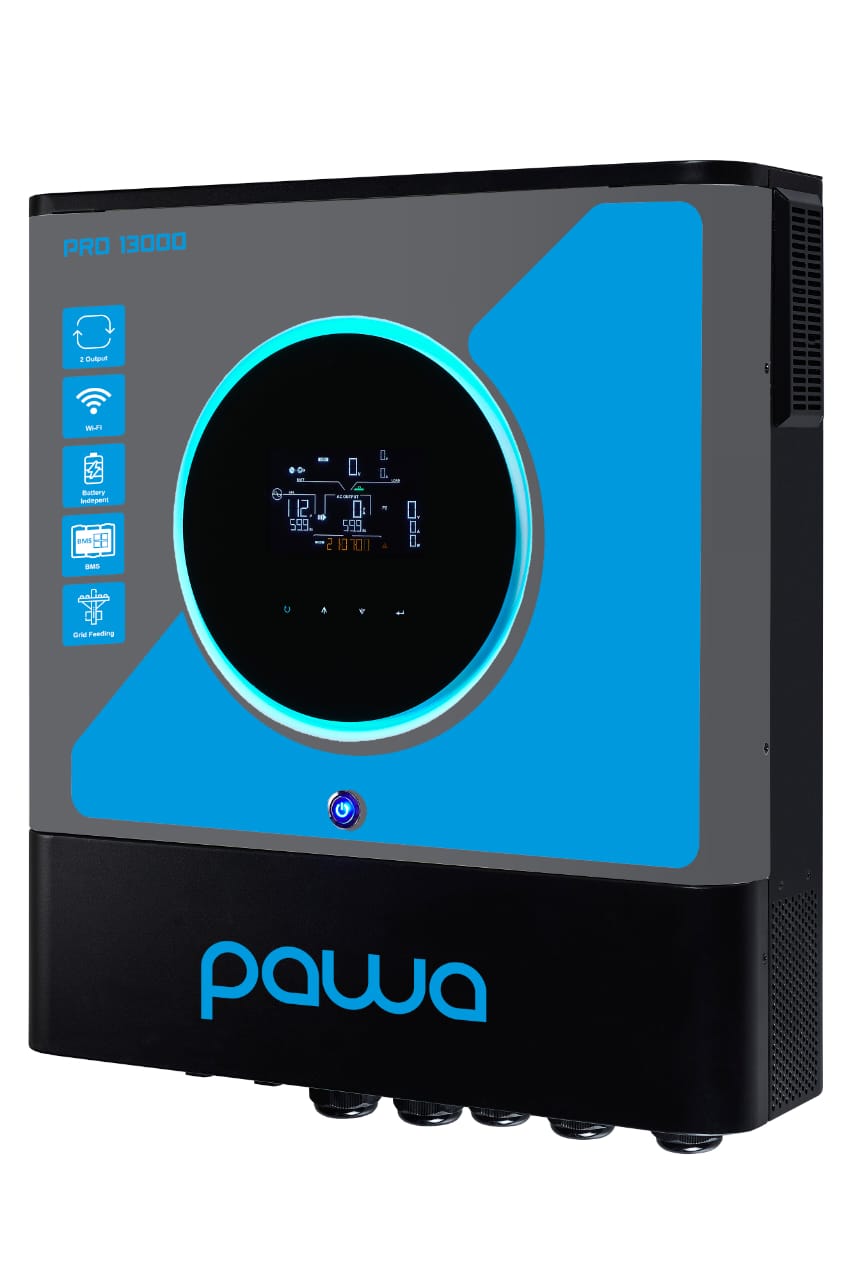

PAWA Solar Inverter PRO 13000 (11000VA / 11000W)

Product Overview:

Step up your solar power system with the PAWA PRO 13000, a premium-grade 11000W solar inverter made for high-demand setups. Offering massive PV input power, parallel operation, and smart hybrid control, this inverter is perfect for commercial buildings, villas, and large-scale off-grid or hybrid solar systems. Developed by Voltronics Taiwan, it delivers world-class stability, energy efficiency, and user-friendly operation.

⚙️ Key Features:

• Rated Power: 11000VA / 11000W

• Parallel Capability: Up to 6 units for extended capacity

• Dual Output for smart load division

• Maximum PV Input Current: 27A × 2 (Max 40A)

• Wide PV Input Range: 90VDC – 450VDC

• MPPT Solar Charging Technology for peak efficiency

• Built-in Wi-Fi Monitoring (Android/iOS App Supported)

• RGB LED Indicators for quick system status view

• Supports USB On-the-Go Function

• BMS Communication Support: RS485, CAN-BUS, or RS232

• Replaceable Fan & Anti-Dust Design for easy maintenance

• Battery Independent Operation

• Built-in DC Output Ports for DC fans, LED lights, routers, and more

⚡ Input & Output Specifications:

• Input Voltage: 230 VAC

• Selectable Voltage Range:

  • 170–280 VAC (For Personal Computers)

  • 90–280 VAC (For Home Appliances)

• Frequency Range: 50/60 Hz Auto-Sensing

• Output Voltage Regulation: 230 VAC ±5%

• Surge Power: 22000VA

• Efficiency (Peak): 93%

• Transfer Time:

  • 10 ms (PCs)

  • 20 ms (Home Appliances)

• Waveform: Pure Sine Wave

• DC Voltage: 12VDC ±5%, 100W

🔋 Battery Details:

• Battery Voltage: 48VDC

• Floating Charge Voltage: 54VDC

• Overcharge Protection: 63VDC

☀️ Solar Charger (MPPT):

• Type: MPPT

• Maximum PV Array Power: 13000W (6500W × 2)

• Operating Voltage Range: 90–450VDC

• Open Circuit Voltage: 500VDC

• Maximum PV Input Current: 27A × 2 (Max 40A)

• Maximum Solar Charge Current: 160A

• Maximum AC Charge Current: 120A

• Maximum Combined Charge Current: 150A

🧠 Physical & Connectivity:

• Dimensions (D×W×H): 159.4 × 503.6 × 530.8 mm

• Weight: 20 kg

• Communication Interface: USB / RS232 / RS485 / WiFi / Dry-Contact

🌤️ Operating Environment:

• Humidity: 5%–95% (Non-Condensing)

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

🛠️ Warranty & Support:

✅ 1-Year Parts + 4 Years Service Warranty
✅ Free Survey & Installation Guidance
