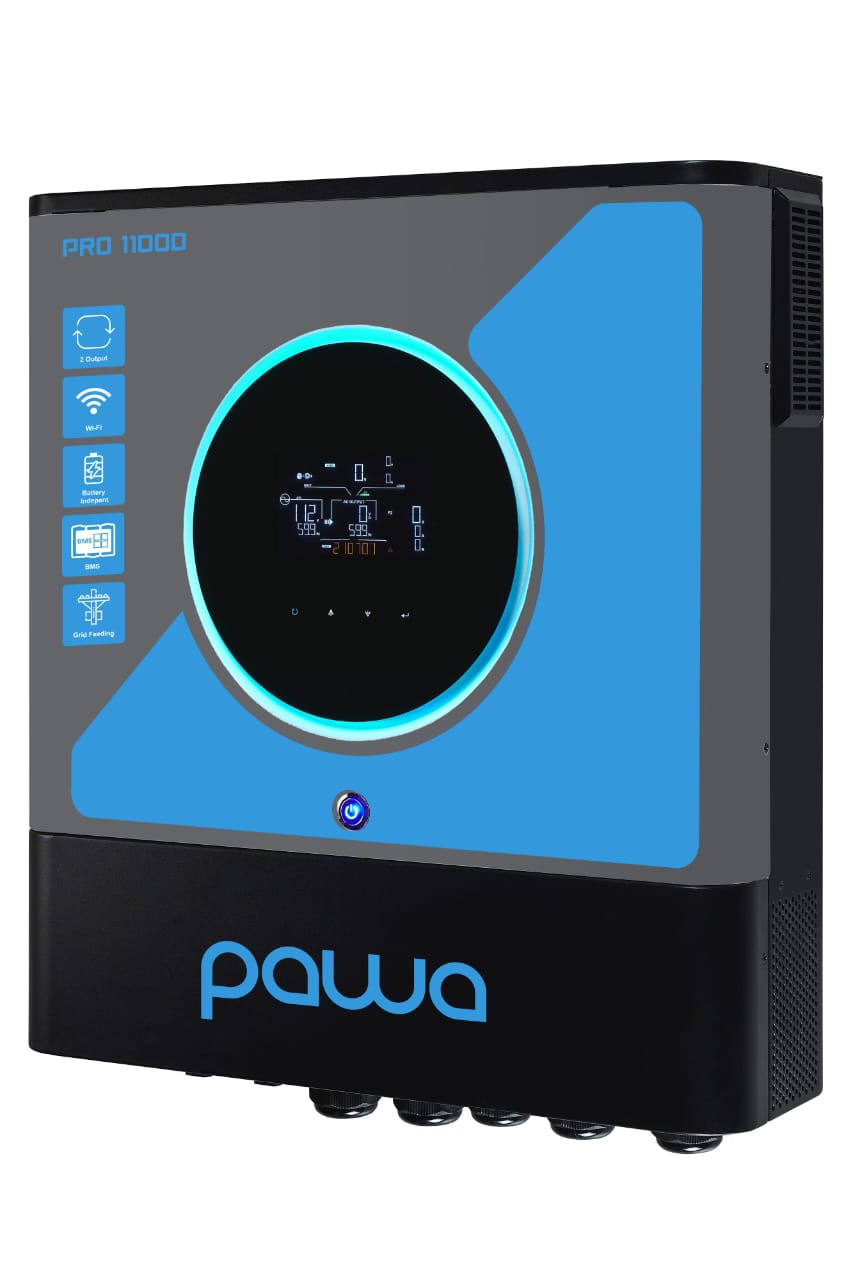

PAWA Solar Inverter PRO 11000 (8000VA / 8000W)

Product Overview

Experience exceptional solar performance with the PAWA PRO 11000, an 8000W pure sine wave inverter built for heavy-duty energy requirements. Designed for commercial, residential, and industrial setups, this inverter offers smart load management, Wi-Fi monitoring, and parallel capability with up to 6 units for scalable power. Made by Voltronics Taiwan, it combines reliability, intelligent control, and cutting-edge design to deliver consistent energy every day.

⚙️ Key Features:

• Rated Power: 8000VA / 8000W

• Parallel Capability: Up to 6 units for increased power capacity

• Dual Output for smart load management

• Maximum PV Input Current: 27A × 2 (Max 40A)

• Wide PV Input Voltage Range: 90VDC – 450VDC

• Built-in Wi-Fi (Android/iOS App Available) for real-time monitoring

• Status Indication with RGB Lights

• USB On-the-Go Support

• BMS Communication Port (RS485, CAN-BUS, or RS232)

• Battery Independent Design – operates efficiently without a connected battery

• Built-in Anti-Dust Kit for long life

• Replaceable Fan Design for easy maintenance

• Compatible with Utility or Generator Input

⚡ Input & Output Specifications:

• Input Voltage: 230 VAC

• Selectable Range:

  • 170–280 VAC (For PCs)

  • 90–280 VAC (For Home Appliances)

• Frequency Range: 50/60 Hz Auto Sensing

• Output Voltage Regulation: 230 VAC ±5%

• Surge Power: 16000VA

• Efficiency (Peak): 93%

• Transfer Time:

  • 10 ms (For Personal Computers)

  • 20 ms (For Home Appliances)

• Waveform: Pure Sine Wave

• DC Voltage: 12 VDC ±5%, 100W

🔋 Battery Details:

• Battery Voltage: 48VDC

• Floating Charge Voltage: 54VDC

• Overcharge Protection: 66VDC

☀️ Solar Charger (MPPT):

• Type: MPPT (Maximum Power Point Tracking)

• Max PV Array Power: 11000W (5500W × 2)

• Operating Voltage Range: 90–450VDC

• Open Circuit Voltage: 500VDC

• Max PV Input Current: 27A × 2 (Max 40A)

• Max Solar Charge Current: 160A

• Max AC Charge Current: 120A

• Max Combined Charge Current: 150A

🧠 Physical & Connectivity:

• Dimensions (D×W×H): 185.4 × 503.6 × 530.8 mm

• Weight: 20 kg

• Communication Interface: USB / RS232 / RS485 / WiFi / Dry-Contact

🌤️ Operating Environment:

• Humidity: 5%–95% (Non-Condensing)

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

🛠️ Warranty & Support:

✅ 1-Year Parts + 4 Years Service Warranty
✅ Free Site Survey & Installation Assistance
